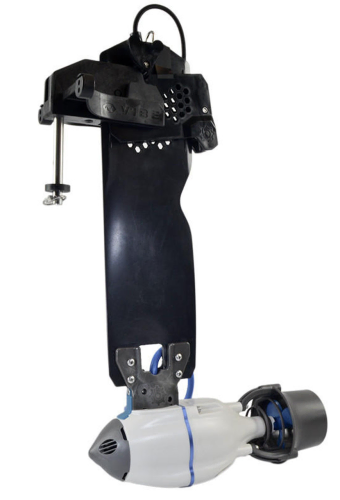

Bixpy Universal Rudder Adapter

Compatible with the Bixpy K-1 & J-2 Motors

The Vibe Universal Bixpy Rudder can be fitted to kayaks with a 10mm rudder pin receiver and can be easily converted into a Bixpy motor bracket by unscrewing the lower section of the rudder. Once the lower section is removed, a Bixpy K-1 or J-2 motor can be bolted onto the rudder.

Compatible with all Vibe Kayaks and many other kayaks with a 10mm rudder housing.

FEATURES & SPECIFICATIONS

• Mounts into any standard rudder 10mm pin hole
• Gravity deployment system
• 90° quick Slide & Stow feature
• Gravity "Lock-down" mechanism for reverse speeds
• 18in. x 4in. rudder blade
• Kick up feature for shallow water and hazards
• Removable cap for mounting Bixpy Jet Motor
• The top of the pin to the top of the motor measures 12.25 inches or 305 mm.
• Pin length is 85 mm. Gap from pin to blade is 38 mm.
• To work effectively, the Bixpy motor needs to be about 2" to 3" below waterline.

Kit supplied with: 1 x Bixpy universal rudder, 1 x Bixpy cleat & 1 x Pull Up Rope.
